Introduction:
Our XPS400 kpa boards come with aluminium foil to achieve quick, even spread of heat across the floor.
Our boards are suitable for wooden and screed subfloor. They can be tiled on straight, (being 400kpa), using solvent free adhesive. Please see the following diagram to understand the difference in spread of heat with different thickness of aluminium on the overlay board.
Boards without aluminium foil or a very thin layer of aluminium foil may work out cheap initially, but they can result in higher energy / fuel bill over the period of time.
Our overlay boards have aluminium foil in the grooves too, which means that heat will actively reflect to the floor and result in faster heat transfer. The above-mentioned features make our panels very effective and energy efficient, resulting in lower fuel bills.
MAKE THE RIGHT CHOICE. SELECT ULTRA RESPONSE XPS 400 BOARDS BY ULTRAFLOW
XPS boards have better insulation and moisture resistant properties as compared with EPS boards.
Please see the following table for the details of the aluminium spreader plate, edge insulation, XPS glue and pipe rail clip.
| UFH MULTILAYERED PIPES (WRAS APPROVED) & CLIPS | ||||
|---|---|---|---|---|
| Code | Description | Details | ||
| XPS400-2016 | XPS400 Low Profile 20mm High Ultra Response Board With 200 Microns Of Aluminium For 16mm Pipe (150mm Pipe Centre) | 600mm x 1200mm x 20mm (0.72m2) | ||
| XPS400-1612 | XPS400 Low Profile 16mm High Ultra Response Board With 200 Microns Of Aluminium For 12mm Pipe (120mm Pipe Centre) | 600mm x 1200mm x 16mm (0.72m2) | ||

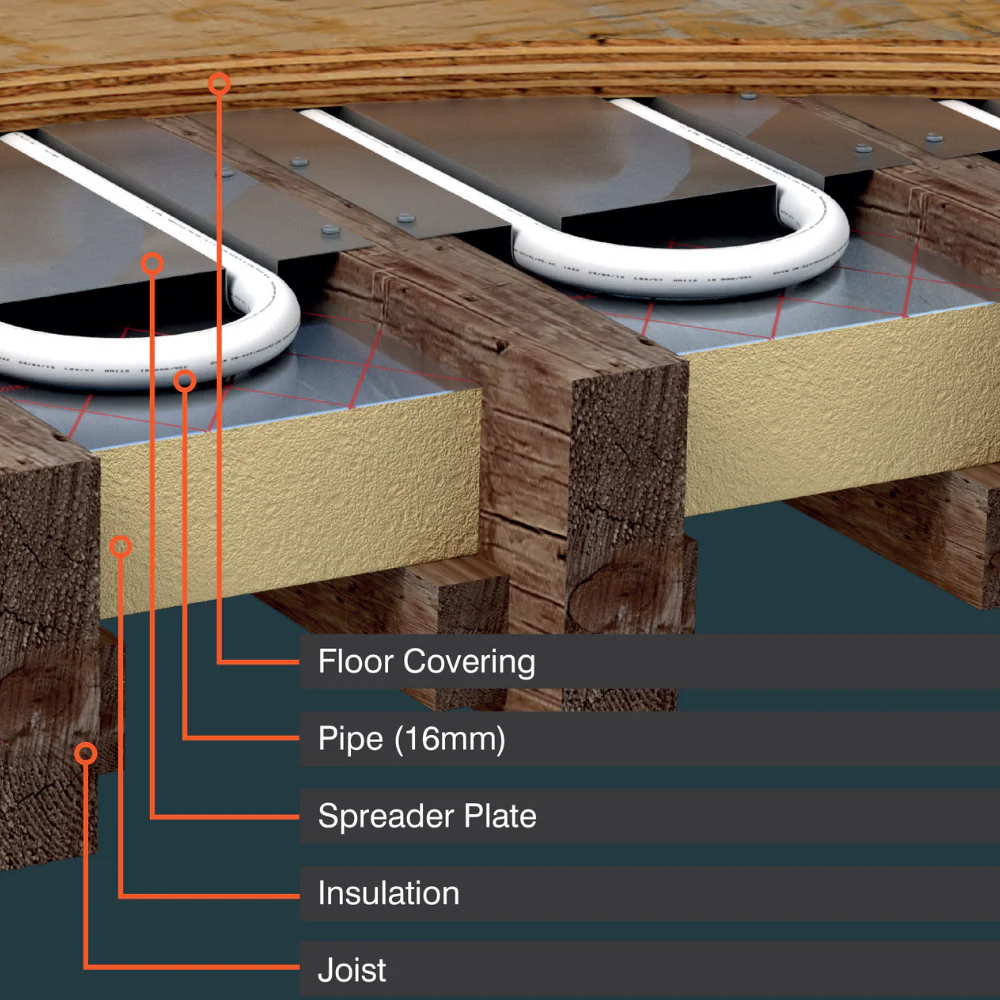

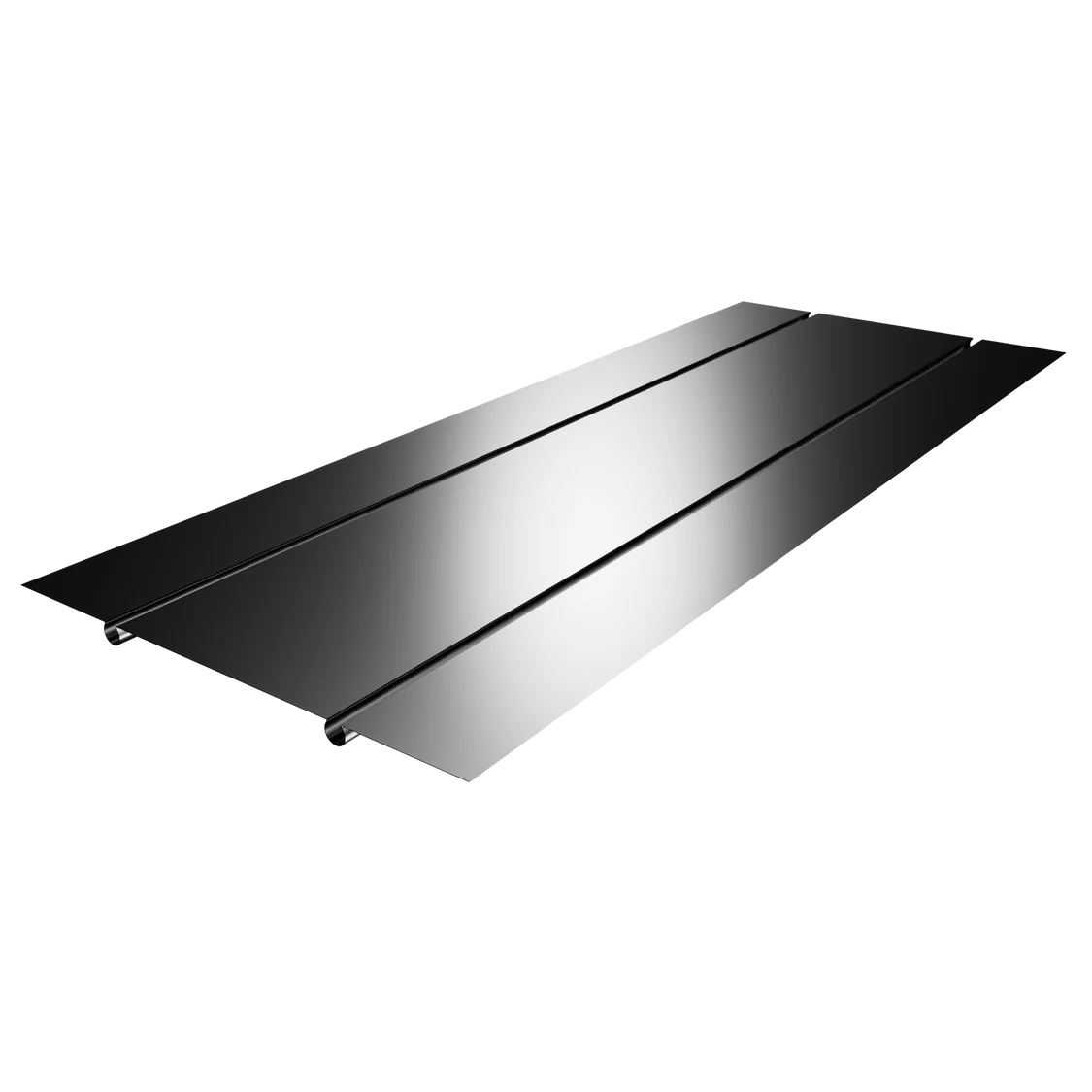

| UFASP | Aluminium Spreader Plate For Use On 400mm Centered Wooden Joist (200mm Pipe Centre) | 390mm x 1000mm (0.39m2) | ||
| UFEI-25M | Premium Self Adhesive Edge Insulation Roll - 25m | 100mm x 8mm | ||
| UFSG-500 | 500ml XPS Spray Glue | Covers approx 5m² | ||
| UFSG-22 | 22ltr XPS Spray Glue (Canister) | Covers approx 200m² | ||
| UFPCR | Pipe Clip Rail To Suit 15-18mm Pipe - Self Adhesive | 1 Meter length | ||
