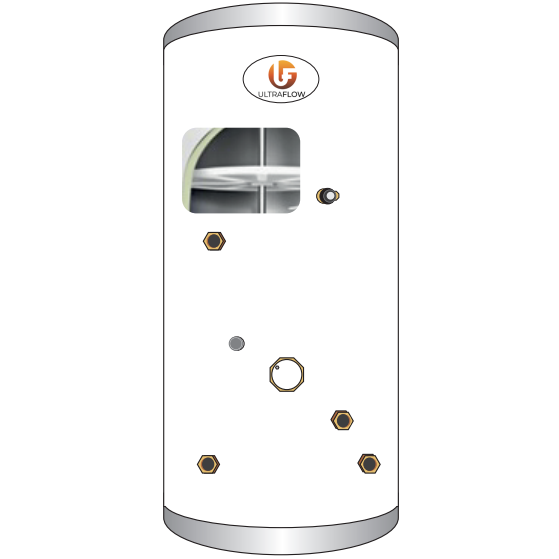

ULTRAFLOW AIR INDIRECT STANDARD & SLIM

ULTRAFLOW AIR INDIRECT STANDARD & SLIM

Specification:

  •  Internal expansion cylinder
  • 25 years warranty on cylinders and 2 year on parts
  • Fully insulated with 50mm insulation to minimize heat loss
  • Manufactured with high grade Duplex Stainless steel
  • Supplied complete with high quality unvented kit
  • Mechanical cylinder stat included
  • Highly efficient coil to minimize reheat time & save fuel
  • High quality 3kW incoloy immersion heater supplies
  • Secondary return on 200Ltr and above standard cylinders

Upgrades available on request:

  • Highflow cyl with 1” hot and cold conenctions & 28mm inlet group
  • 6kW incoloy, 3kW or 6kW titanium immersion
  • Extra Immersion(s)
  • Bigger coil for high gain / quick recovery

Connection Sizes:

3/4" comp:  Hot Draw, Cold Feed, Sec Ret & Coil Connections
1 3/4" F:  Immersion(s)
1/2" F:  T & P relief Valve



Documentation: View full details
STANDARD AIR INDIRECT
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Coil Rating (kW) Reheat Time (mins) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
120 UOI120 545 915 120 17.76 15 1 1.01 42 B 30
150 UOI150 545 1100 150 18.25 18 1 1.20 50 B 38
170 UOI170 545 1224 170 19.35 22 1 1.30 54 B 42
200 UOI200 545 1414 200 19.94 26 1 1.39 58 B 45
250 UOI250 545 1722 250 20.68 29 1 1.44 60 B 51
300 UOI300 545 1975 300 23.57 35 1 1.80 75 C 60


SLIM INDIRECT AIR
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Coil Rating (kW) Reheat Time (mins) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
120 UOIS120 475 1240 120 18.76 15 1 1.15 48 B 30
150 UOIS150 475 1505 150 18.82 17 1 1.37 57 C 38
170 UOIS170 475 1680 170 19.22 20 1 1.49 62 C 42
200 UOIS200 475 1950 200 19.36 27 1 1.61 67 C 45

Dimensions are to be used as guideline only
