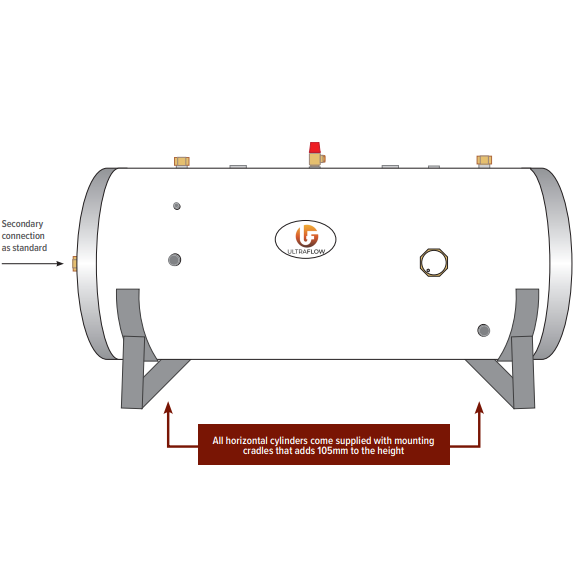

ULTRAFLOW HEATPUMP HORIZONTAL STANDARD & SLIM

Specification:

• 25 years warranty on cylinders and 2 year on parts
• Fully insulated with 50mm insulation to minimize heat loss
• Manufactured with high grade Duplex Stainless steel
• Supplied complete with high quality unvented kit
• 10mm sensor probe pocket included for heat pump control
• Highly efficient coil to maximise heat exchange with heat pump
• High quality 3kW incoloy immersion heater supplies
• Secondary return on 200Ltr and above cylinders on standard models

• Available in Slimline 475mm diameter up to 200 ltr on request
• Our heat pump horizontal cylinder comes with a unique stat pocket that allows monitor probe positioning in the cylinder to maximise hot water capacity from the horizontal tank.

Upgrades available on request:

• Highflow cyl with 1” hot and cold connections & 28mm inlet group
• 6kW incoloy, 3kW or 6kW titanium immersion
• Extra Immersion(s)
• Larger capacity expansion vessel

Connection Sizes:

3/4" comp:	Hot Draw, Cold Feed & Sec Ret
1” F:	HP flow and HP return
1 3/4" F:	Immersion(s)
1/2" F:	T & P relief Valve
