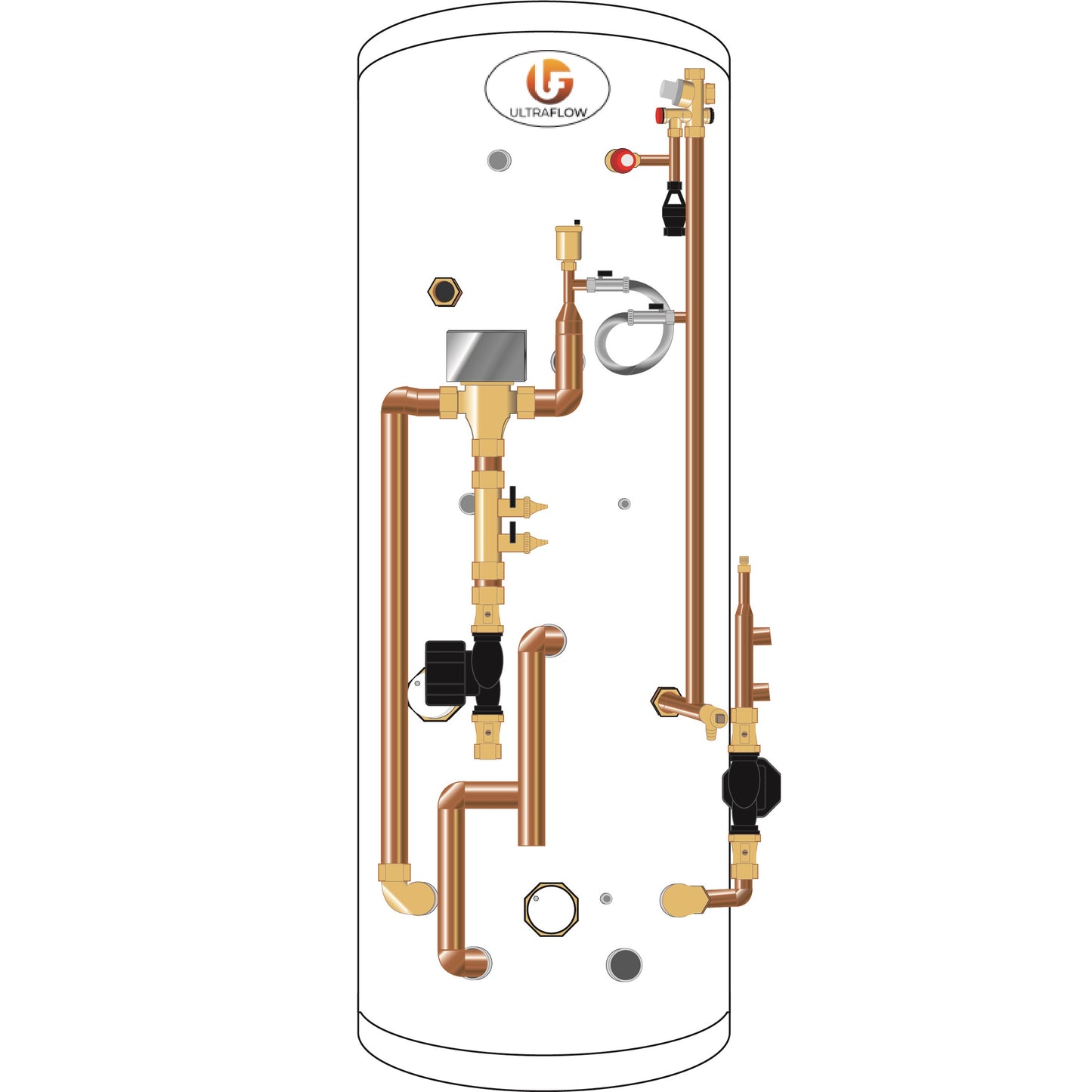

ULTRAFLOW HEAT PUMP BUFFER COMBO PRE PLUMBED STANDARD & SLIM

Introduction:

The buffer combo pre plumb range has been designed with ease and speed of installation in mind. The setup makes use of a logical layout, and a separate buffer-fed heating circuit with a 6m head circulating pump.
The twinned heating return to the heat pump combines both the return from the coil (during DHW heating) and the cold lower temperatures contained within the buffer. It is recommended to install a magnetic filter on the common return to heat pump, to ensure optimal performance and longevity of the heating system

The heat pump buffer combo pre plumb cylinders come provided with:

• 3-port full diverting valve
• Remote filling loop with pressure gauge
• Fill & flush valve for glycol-based application
• 6m heating circulation pump
• Primary water expansion vessel
• “With pump” models comes with 8 or 9m primary pumps



Connection Sizes:

3/4" comp:	Hot Draw, Cold Feed & Sec Ret
1" F:	HP flow and HP return
1 3/4" F:	Immersion(s)
1/2" F:	T & P relief Valve
