MANIFOLDS

MANIFOLDS

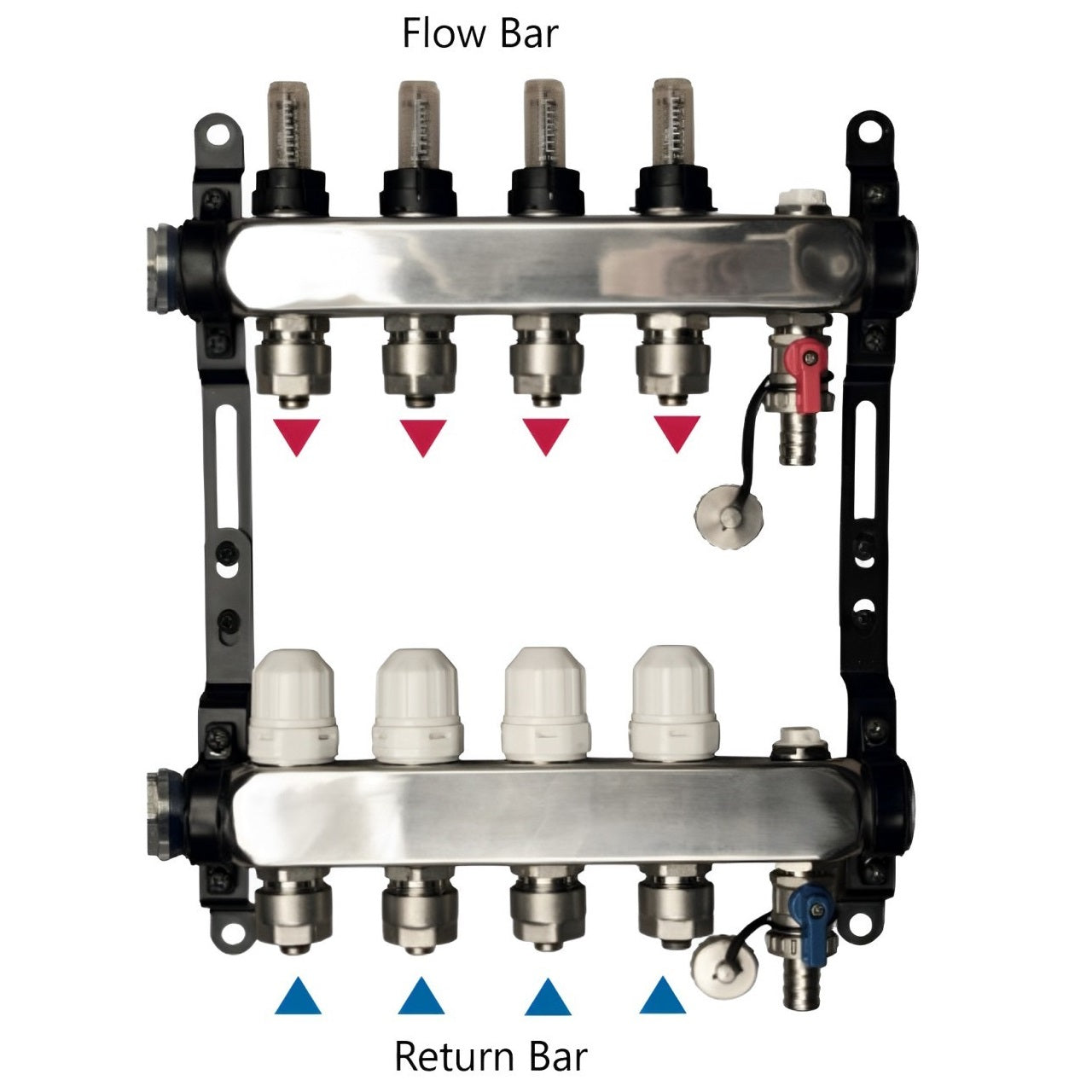

The Manifold and Pump set are at the heart of any underfloor heating system since they control the flow and distribution of water from the heat source (e.g. boiler, heat pump) to each underfloor pipe circuit. Our manifolds come complete with:

  • Pair of isolation values with temperature gauge
  • Pair of auto air vent
  • Pair of drain valves
  • Pair of end caps
  • 16mm pipe connectors (Euro cones)
  • Manifold brackets

Our manifolds are available for 2-12 underfloor heating circuit ports and are supplied with fully assembled fixing brackets. Each manifold is provided with 1” flow/return headers and is produced as a single unit from high quality stainless steel.

Manifold Installation Guide

View full details
UNDERFLOOR HEATING MANIFOLD
Code Description Details
UFMAN-1 1 Port 16mm Stainless Steel Manifold Set

Single Room Control Pack for Underfloor Heating
UFMAN-2 2 Port 16mm Stainless Steel Manifold Set

Each set comes complete with:

  • Pair of isolation valve with temperature gauge
  • Pair of auto air vent
  • Pair of drain off
  • Pair of end cap
  • 16mm pipe connectors (Euro cone)
  • Manifold brackets
UFMAN-3 3 Port 16mm Stainless Steel Manifold Set
UFMAN-4 4 Port 16mm Stainless Steel Manifold Set
UFMAN-5 5 Port 16mm Stainless Steel Manifold Set
UFMAN-6 6 Port 16mm Stainless Steel Manifold Set
UFMAN-7 7 Port 16mm Stainless Steel Manifold Set
UFMAN-8 8 Port 16mm Stainless Steel Manifold Set
UFMAN-9 9 Port 16mm Stainless Steel Manifold Set
UFMAN-10 10 Port 16mm Stainless Steel Manifold Set
UFMAN-11 11 Port 16mm Stainless Steel Manifold Set
UFMAN-12 12 Port 16mm Stainless Steel Manifold Set
