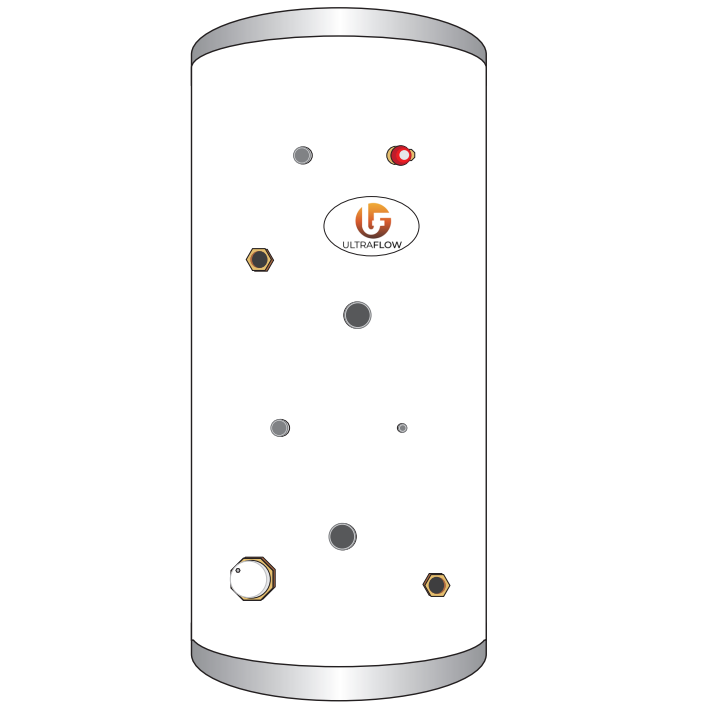

ULTRAFLOW HEATPUMP STANDARD & SLIM

ULTRAFLOW HEATPUMP STANDARD & SLIM

Specification:

  • 25 years warranty on cylinders and 2 year on parts
  • Fully insulated with 50mm insulation to minimize heat loss
  • Manufactured with high grade Duplex Stainless steel
  • Supplied complete with high quality unvented kit (page 20)
  • 10mm sensor probe pocket included for heat pump control
  • Highly efficient coil to maximise heat exchange with heat pump
  • High quality 3kW incoloy immersion heater supplies
  • Secondary return on 200Ltr and above cylinders on standard models
  • Supplied with 28mm coil connection and 22mm hot and cold connection

Upgrades available on request:

  • Highflow cyl with 1” hot and cold connections & 28mm inlet group
  • 6kW incoloy, 3kW or 6kW titanium immersion
  • Extra Immersion(s)
  • Larger capacity expansion vessel

Connection Sizes:

3/4" comp:  Hot Draw, Cold Feed & Sec Ret
1” F: HP flow and HP return
1 3/4" F:  Immersion(s)
1/2" F:  T & P relief Valve



Documentation: View full details
STANDARD HEATPUMP UNVENTED
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Coil Rating (kw) Heat Pump Coil surface area (m²) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
150 UI150‑HP 545 1100 150 24.67 2.08 1 1.22 44 B 37
170 UI170‑HP 545 1224 170 24.67 2.08 1 1.63 68 C 43
200 UI200‑HP 545 1414 200 31.5 2.97 1 1.70 71 C 49
250 UI250‑HP 545 1722 250 33.08 2.97 1 1.99 83 C 53
300 UI300‑HP 545 1945 300 35.44 2.97 1 2.26 94 C 57
400* UI400‑HP 690 1580 400 36.94 4.00 2 1.95 81 C 76
500* UI500‑HP 690 1910 500 36.44 4.00 2 2.31 96 C 92
* These cylinders come with 1" hot outlet and cold feed and a second immersion heater.


SLIM HEATPUMP UNVENTED
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Coil Rating (kw) Heat Pump Coil surface area (m²) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
120 UIS120-HP 475 1240 120 23.46 1.61 1 1.25 52 B 33
150 UIS150~HP 475 1505 150 23.46 1.61 1 1.42 59 B 39
170 UIS170-HP 475 1680 170 24.67 2.08 1 1.70 71 C 45
200 UIS200-HP 475 1950 200 24.64 2.08 1 1.80 75 C 48

Dimension are to be used as guideline only.
