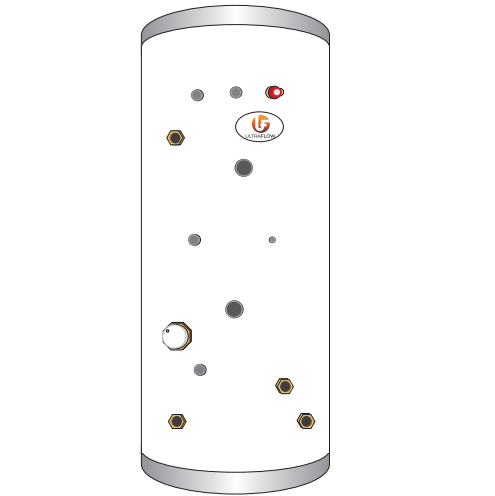

ULTRAFLOW HEATPUMP SOLAR

ULTRAFLOW HEATPUMP SOLAR

Specification:

  •  25 years warranty on cylinders and 2 year on parts
  • Fully insulated with 50mm insulation to minimize heat loss
  • Manufactured with high grade Duplex Stainless steel
  • Supplied complete with high quality unvented kit (page 20)
  • 10mm sensor probe pocket included for heat pump control
  • Highly efficient coil to maximise heat exchange with heat pump.
  • High quality 3kW incoloy immersion heater
    supplies
  • Secondary return on 200Ltr and above cylinders on std models

Upgrades available on request:

  • Highflow cyl with 1” hot and cold conections & 28mm inlet group
  • 6kW incoloy, 3kW or 6kW titanium immersion
  • Extra Immersion(s)
  • Larger capacity expansion vessel
  • 400L & 500L to 4m2 Coil

Connection Sizes:

3/4" comp:  Hot Draw, Cold Feed, Sec Ret & Solar Coil Conns
1” F: HP flow and HP return
1 3/4" F:  Immersion(s)
1/2" F:  T & P relief Valve



Documentation: View full details
STANDARD HEATPUMP SOLAR TWIN COIL
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Heat Pump Coil Rating (kw) Heat Pump Coil Surface Area (m²) Solar Coil Surface Area (m²) Solar Coil Rating (kW) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
170 UWI170-HP 545 1224 170 24.67 2.08 0.48 17.8 1 1.63 68 C 46
200 UWI200-HP 545 1414 200 31.5 2.97 0.48 18.76 1 1.70 71 C 52
250 UWI250-HP 545 1722 250 33.08 2.97 0.48 19.65 1 1.99 83 C 56
300 UWI300-HP 545 1945 300 35.44 2.97 0.48 21.24 1 2.26 94 C 60
400* UWI400-HP 690 1580 400 36.94 3.02 0.88 19.63 2 1.95 81 C 83
500* UWI500~HP 690 1910 500 36.44 3.02 0.88 19.92 2 2.31 96 C 99
* These cylinders come with 1" hot outlet and cold feed and a second immersion heater

Dimensions are to be used as guideline only
