Chip Board Flooring

Chip Board Flooring

Introduction:

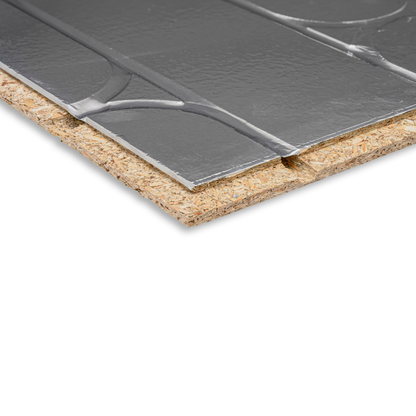

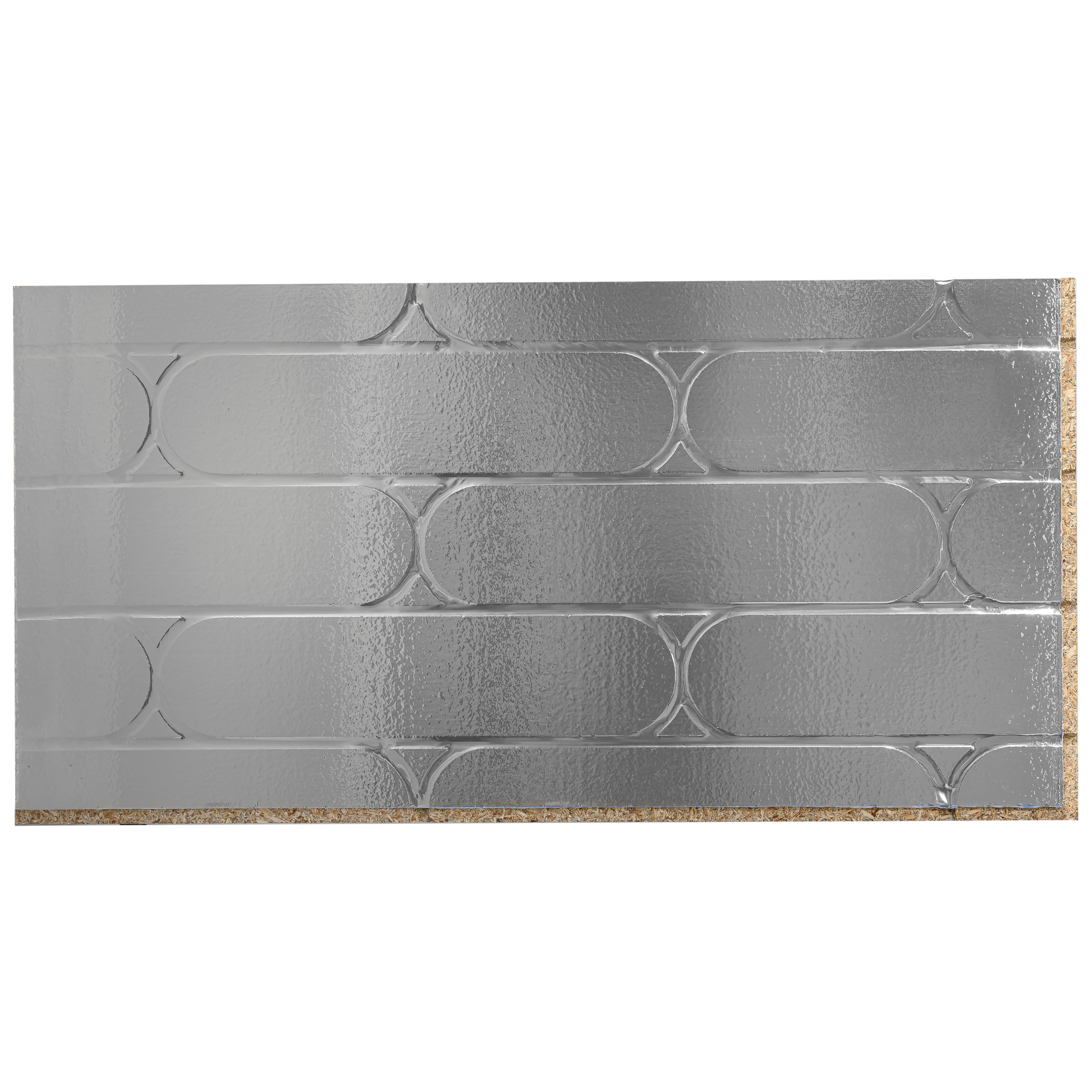

We offer a structurally tested 22mm P5 routed chipboard for 12 and 16mm rout @ 150mm and 200mm centers, all with option of plain or foil faced

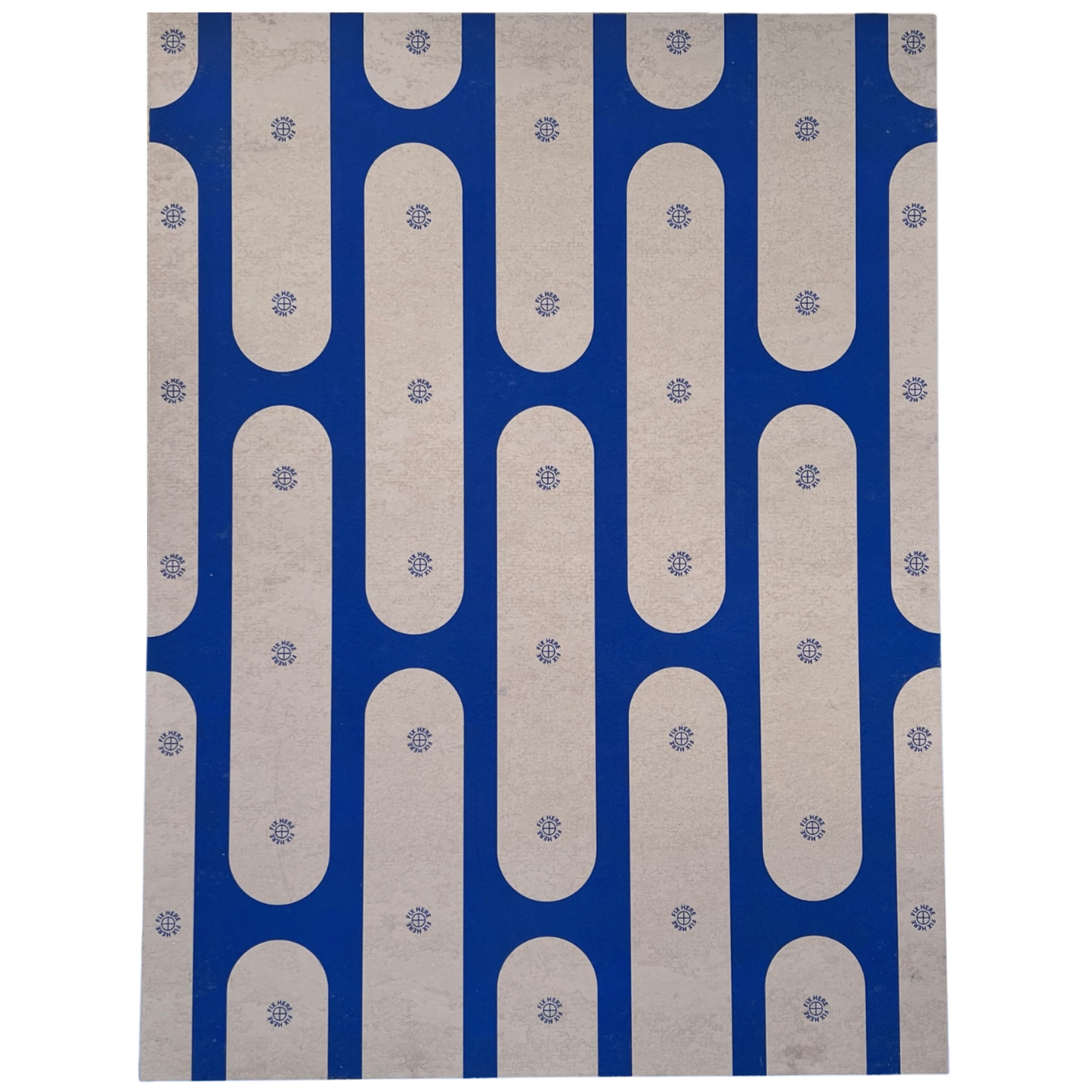

We also offer a 6mm fiber cement board, in both printed and plain version, to complete the chip board as structural floor with 28mm floor build up.



View full details
Product Product Code Size Specification Pipe and distance
Ultraflow CHiP-R UFCHIP0226002400R-12/150 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board  12mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226002400R-FF-12/150 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  12mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226002400R-12/200 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board  12mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226002400R-FF-12/200 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  12mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226002400R-16/150 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board  16mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226002400R-FF-16/150 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  16mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226002400R-16/200 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board  16mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226002400R-FF-16/200 22 x 2400 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  16mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226001200R-12/150 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board  12mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226001200R-FF-12/150 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  12mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226001200R-12/200 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board  12mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226001200R-FF-12/200 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  12mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226001200R-16/150 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board  16mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226001200R-FF-16/150 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  16mm @ 150mm c/c
Ultraflow CHiP-R UFCHIP0226001200R-16/200 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board  16mm @ 150mm c/c
Ultraflow CHiP-R FOIL FACED UFCHIP0226001200R-FF-16/200 22 x 1200 x 600mm ‘Straights’ panels with handed radius returns throughout the board - with 50mu aluminium bonded foil facing  16mm @ 150mm c/c





Product Product Code Size Specification Additional Details
UltraBacker UFBACKER0061200800 6 x 1200 x 900mm  6mm fibre cement cover boards  1.08/m²
Printed UltraBacker UFBACKER0061200900PRINT 6 x 1200 x 900mm 6mm fibre cement cover boards – printed with pipe layout design and screw fixing locations 1.08/m²
UltraBacker Screw’s  UFSCREW5X25     5mm x 25mm      Screws for fixing ResoBacker boards to Routed Chipboard (200x per box) 48 Screws / m²
Ultraflow CHIP-R Wood Screw  UFSCREW5X80 5mm x 80mm  Screws for fixing Routed Chipboard to floor joists (200x per box) 9 / m² @ 400mm Joist
12 / m² @ 600mm Joist
D3 PVA Joint Glue UFBONDD3PVA1KG 1kg bottle Wood glue for chipboard T&G joints Covers ~ 30m²
UltraBOND EVA (1kg Bottle) UFEVA1KG 1kg  Co-Polymer adhesive for bonding porous (Wood / Cement board) and non-porous (aluminium foil) substrates together Covers ~ 5m²
UltraBOND EVA (25kg drum) UFEVA25KG 25kg  Co-Polymer adhesive for bonding porous (Wood / Cement board) and non-porous (aluminium foil) substrates together Covers ~ 125m²
