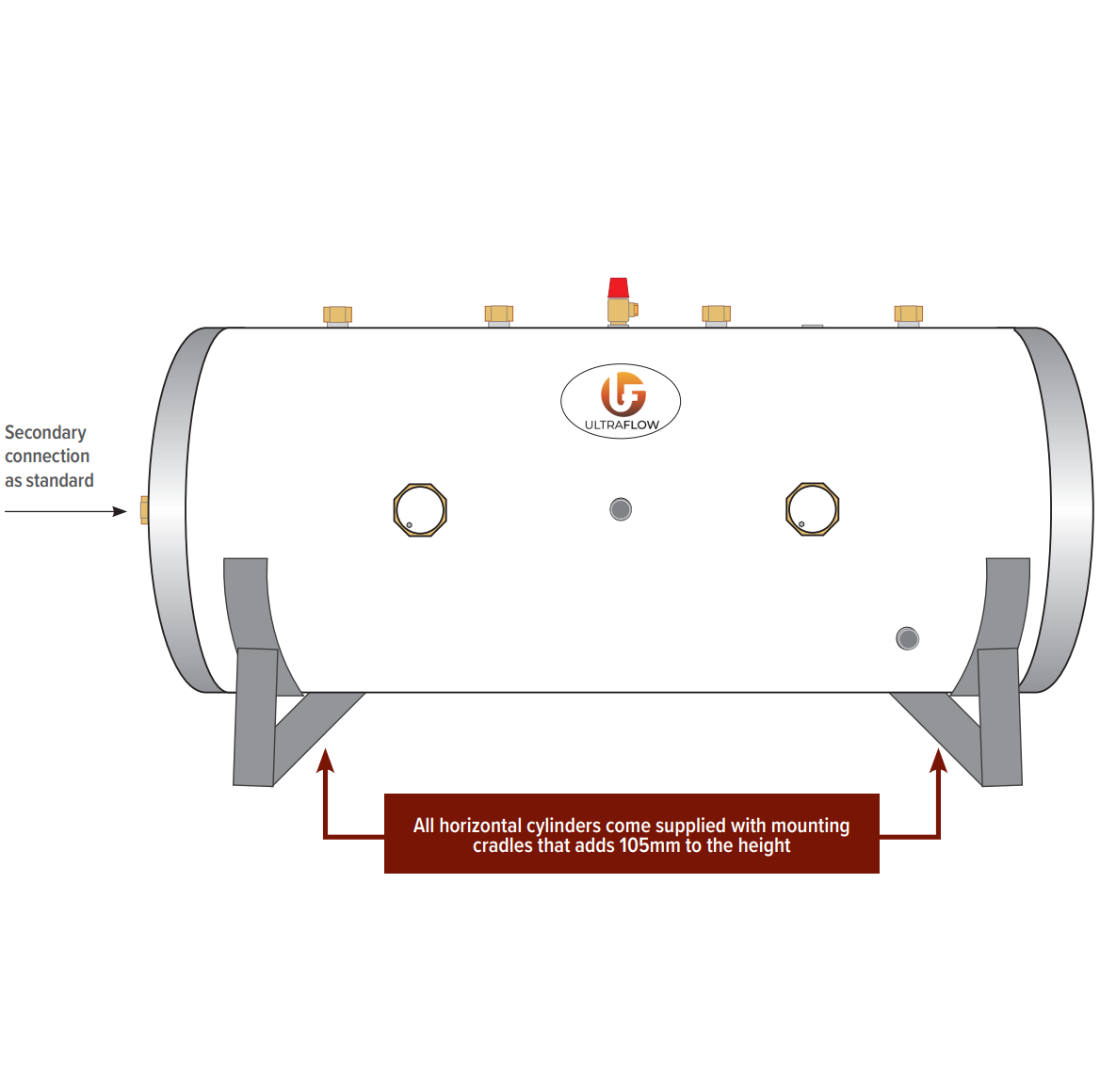

ULTRAFLOW HORIZONTAL CYLINDERS STANDARD & SLIM

ULTRAFLOW HORIZONTAL CYLINDERS STANDARD & SLIM

Specification:

  • 25 years warranty on cylinders and 2 year on parts
  • Fully insulated with 50mm insulation to minimize heat loss
  • Manufactured with high grade Duplex Stainless steel
  • Supplied complete with high quality unvented kit
  • Mechanical cylinder stat included
  • High quality 3kW incoloy immersion heater supplies
  • Highly efficient coil to minimize reheat time & save fuel bills
  • 2x immersion heaters as standard on 150l and above cylinders
  • Available in slimline 475mm diameter, up to 200 litres on request

Upgrades available on request:

  • High flow cylinder with 1" hot and cold connection and 28mm inlet group
  • 6kW incoloy, 3kW or 6kW titanium immersion
  • Extra Immersion(s)
  • Larger capacity expansion vessel

Connection Sizes:

3/4" comp:  Hot Draw, Cold Feed, Sec Ret & Coil Connections
1 3/4" F:  Immersion(s)
1/2" F:  T & P relief Valve



Documentation: View full details
STANDARD HORIZONTAL INDIRECT UNVENTED
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Coil Rating (kw) Reheat Time (mins) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
120 UIH120 545 915 120 15.80 17 1 1.30 54 C 27
150 UIH150 545 1100 150 16.50 22 2 1.56 65 C 33
180 UIH180 545 1284 170 18.00 22 2 1.66 69 C 39
200 UIH200 545 1414 200 19.94 25 2 1.87 78 C 40
250 UIH250 545 1722 250 20.68 28 2 2.11 88 C 46
300 UIH300 545 1975 300 23.57 32 2 2.30 96 C 50
400* UIH400 690 1580 400 27.58 52 2 2.42 101 C 76
500* UIH500 690 1910 500 28.49 54 2 2.56 106 C 92
* These cylinders come with 1" hot outlet and cold feed.

Dimension are to be used as guideline only.
