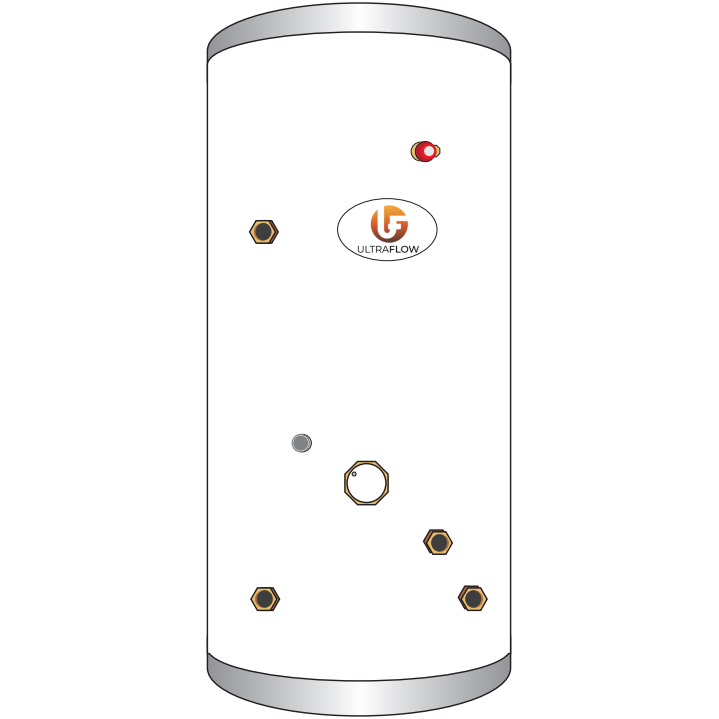

ULTRAFLOW INDIRECT STANDARD AND SLIM

ULTRAFLOW INDIRECT STANDARD AND SLIM

Specification:

  • 25 years warranty on cylinders and 2 year on parts
  • Fully insulated with 50mm insulation to minimize heat loss
  • Manufactured with high grade Duplex Stainless steel
  • Supplied complete with high quality unvented kit
  • Mechanical cylinder stat included
  • Highly efficient coil to minimize reheat time & save fuel
  • High quality 3kW incoloy immersion heater supplies
  • Secondary return on 200Ltr and above standard cylinders

Upgrades available on request:

  • Highflow cyl with 1" hot and cold conn & 28mm inlet group
  • 6kW incoloy, 3kW or 6kW titanium immersion
  • Extra Immersion(s)
  • Bigger coil for High Gain / Quick Recovery
  • Larger capacity expansion vessel

Connection Sizes:

3/4" comp:  Hot Draw, Cold Feed, Sec Ret & Coil Connections
1 3/4" F:  Immersion(s)
1/2" F:  T & P relief Valve







Documentation: View full details
STANDARD INDIRECT UNVENTED
Litre Code Diameter (mm) Height (mm) Nominal Capacity (l) Coil Rating (kw) Reheat Time (mins) Immersion heater(s) Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
90 UI90 545 727 90 15.89 14 1 1.01 42 B 22
120 UI120 545 915 120 17.76 17 1 1.06 44 B 25
150 UI150 545 1100 150 18.25 21 1 1.22 51 B 28
180 UI180 545 1284 180 19.35 27 1 1.34 56 B 33
200 UI200 545 1414 200 19.94 31 1 1.44 60 B 35
200 UI200Short 580 1260 200 19.94 31 1 1.44 60 B 35
250 UI250 545 1722 250 20.68 36 1 1.75 73 C 41
250 UI250Short 580 1485 250 20.68 36 1 1.75 73 C 41
300 UI300 545 1975 300 23.57 41 1 2.04 85 C 45
300 UI300Short 580 1640 300 23.57 41 1 2.04 85 C 45
400* UI400 690 1580 400 27.58 45 2 2.2 92 C 76
500* UI500 690 1910 500 28.49 56 2 2.42 101 C 92

* These cyl come with 1" hot outlet and cold feed and a second immersion heater


SLIM INDIRECT UNVENTED
Litre Code Diameter (mm) Height (mm) Nominal capacity (l) Coil Rating (kw) Reheat Time (mins) Immersion Standing Heat Loss (kWH/24h) Standing Heat Loss (Watts) ERP Band Weight (kg)
60 UIS60 475 714 60 14.62 15 1 0.94 39 B 19
90 UIS90 475 977 90 15.17 16 1 1.06 44 B 21
120 UIS120 475 1240 120 18.76 19 1 1.25 52 B 25
150 UIS150 475 1505 150 18.82 21 1 1.42 59 C 29
180 UIS180 475 1680 180 19.22 24 1 1.51 63 C 33
200 UIS200 475 1950 200 19.36 29 1 1.58 66 C 37

Dimensions are to be used as guideline only
