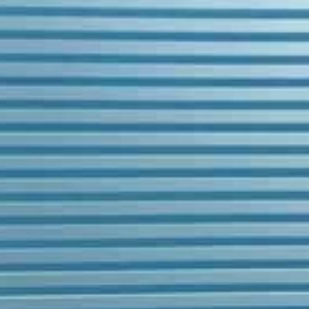

Ultraflow Multi-Purpose transitional board can be easily cut to suit any retrofit project where there is a concentration of pipes or where a corner needs to be formed.
Straight pipe runs can be laid directly into the straight transitional board, a cut to length and width as required. Corners can be formed from a main transitional board, for example, cutting two boards at 45° will provide a 90° turn.
Do not push the 45° cut edges up against each other; leave a space approximately 120mm wide, as this will allow the pipe to be formed and bent as it changes direction from one straight channel to another. Take care not to form too tight a bend and kink the pipe. The open area between the boards can be backfilled with renovation screed, fixing the pipes with suitable nail clips to the subfloor if required, before pouring renovation screed.
Our transitional boards are easy to shape with a craft knife or fine-toothed saw.
