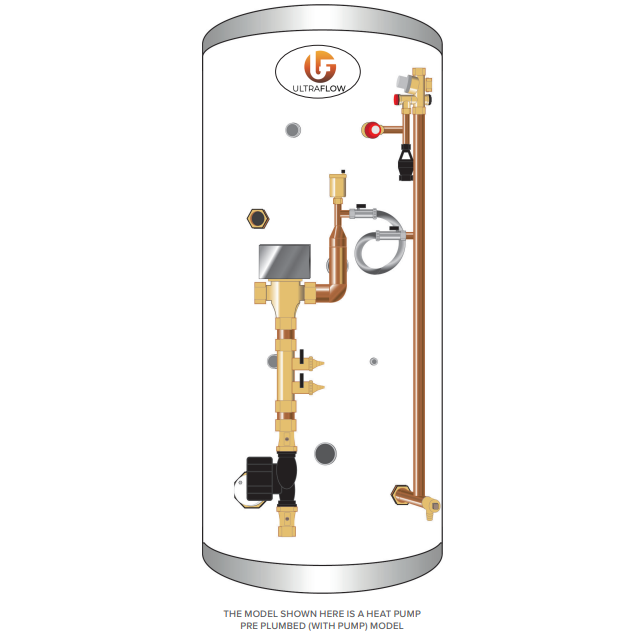

ULTRAFLOW HEAT PUMP PRE PLUMBED CYLINDER STANDARD & SLIM
ULTRAFLOW HEAT PUMP PRE PLUMBED CYLINDER STANDARD & SLIM
Introduction:
Our range of standard and slim heat pump cylinders are available in a pre plumbed format, incorporating several useful unvented components that will aid in the installation and maintenance of your heat
pump system.
The heat pump pre plumb range has been designed with universal installations in mind, making use of intuitive components to suit any application.
The heat pump pre plumb cylinders in 475mm and 545mm diameter come with:
- 3-port full diverting valve
- Remote filling loop with pressure gauge
- Fill & flush valve for glycol-based applications
- “With pump” models comes with 8m head pump
Connection Sizes:
| 3/4" comp: | Hot Draw, Cold Feed & Sec Ret | ||
| 1" F: | HP flow and HP return | ||
| 1 3/4" F: | Immersion(s) | ||
| 1/2" F: | T & P relief Valve | ||
| STANDARD HEAT PUMP PRE-PLUMBED | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Litre | Code (With Pump) | Code (Without Pump) | Diameter (mm) | Height (mm) | Nominal Capacity (l) | Coil Rating (kW) | Heat Pump Coil surface area (m²) | Immersion heater(s) | Standing Heat Loss (kWH/24h) | Standing Heat Loss (Watts) | ERP Band |
| 150 | UIP150-HP | UIP150-HP/X | 545 | 1100 | 150 | 24.67 | 2.08 | 1 | 1.22 | 44 | B |
| 170 | UIP170-HP | UIP170-HP/X | 545 | 1224 | 170 | 24.67 | 2.08 | 1 | 1.63 | 68 | C |
| 200 | UIP200-HP | UIP200-HP/X | 545 | 1414 | 200 | 31.5 | 2.97 | 1 | 1.70 | 71 | C |
| 250 | UIP250-HP | UIP250-HP/X | 545 | 1722 | 250 | 33.08 | 2.97 | 1 | 1.99 | 83 | C |
| 300 | UIP300-HP | UIP300-HP/X | 545 | 1945 | 300 | 35.44 | 2.97 | 1 | 2.26 | 94 | C |
| SLIM HEAT PUMP PRE-PLUMBED | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Litre | Code (With Pump) | Code (Without Pump) | Diameter (mm) | Height (mm) | Nominal Capacity (l) | Coil Rating (kW) | Heat Pump Coil surface area (m²) | Immersion heater(s) | Standing Heat Loss (kWH/24h) | Standing Heat Loss (Watts) | ERP Band |
| 120 | UIPS120-HP | UIPS120-HP/X | 475 | 1240 | 120 | 23.46 | 1.61 | 1 | 1.25 | 52 | B |
| 150 | UIPS150-HP | UIPS150-HP/X | 475 | 1505 | 150 | 23.46 | 1.61 | 1 | 1.42 | 59 | B |
| 170 | UIPS170-HP | UIPS170-HP/X | 475 | 1680 | 170 | 24.67 | 2.08 | 1 | 1.70 | 71 | C |
| 200 | UIPS200-HP | UIPS200-HP/X | 475 | 1950 | 200 | 24.64 | 2.08 | 1 | 1.80 | 75 | C |
Dimensions are to be used as guideline only
